2-3 Week TURNAROUND FOR CSS ONLY
4-6 Weeks FOR CSS + MACHINE WORK
8-10 Weeks for CSS + Assembly
**READ THIS VERY IMPORTANT**
PRICE INCREASE AS OF 2/25/22
BLOCKS WITH SIGNIFICANT GRIME OR OIL CAKED ON THE BLOCK WILL REQUIRE A PRE-WASH ($65) CLEAN YOUR BLOCK BEFORE SHIPPING. PLEASE NOTE THIS IS A COMPLETELY SEPARATE SERVICE THAN JETWASH. ALL BLOCKS MUST ARRIVE CLEAN, SO USE SOME COMMON SENSE AND WASH DOWN ALL THE CAKED ON NASTINESS BEFORE SHIPPING.
BLOCKS ARE NOT INSPECTED BEFORE PERFORMING THE CSS SERVICE. IT IS UP TO YOU TO ENSURE YOUR SLEEVES AND JOURNALS ARE IN USABLE CONDITION BEFORE SHIPPING.
DISASSEMBLY FEE: SEND THE BLOCK IN DISASSEMBLED. IF BLOCK NEEDS TO BE DISASSEMBLED AN ADDITIONAL FEE ($75) WILL BE CHARGED BEFORE SHIPPING.
IF SENDING BLOCK IN FOR ASSEMBLY, SEND ONLY THE BLOCK, CRANK AND MAIN CAPS. THE CRANK SHOULD BE INSTALLED IN THE BLOCK, NO PISTONS/RODS, ETC INSTALLED IN THE BLOCK.
AFTER THE CSS INSTALL, THE BLOCK MUST BE DECKED. THIS IS NOT INCLUDED IN THE DEFAULT SERVICE. WE OFFER THE JOB UNDER MACHINE WORK OR YOU HAVE THE OPTION TO HAVE YOUR LOCAL MACHINE SHOP DECK THE BLOCK.
O-RINGS ARE STRONGLY RECOMMENDED FOR HIGH HP CSS BLOCKS. WE WILL NOT ASSEMBLE HIGH HP CSS BLOCKS WITHTOUT ORINGS.
PISTONS: WHEN HAVING THE BLOCK MACHINED, PISTONS MUST BE SUPPLIED. PISTONS MUST BE .5MM BIGGER THAN THE CURRENT BORE ON THE BLOCK.
IF WE SUPPLY PISTONS, WE WILL ASSUME THE BLOCK IS STOCK BORE UNLESS SPECIFIED OTHERWISE IN THE ORDER COMMENTS.
AFTER ORDERING YOU WILL RECEIVE AN EMAIL WITH SHIPPING INSTRUCTIONS WITHIN 2 BUSINESS DAYS
**DO NOT SHIP THE BLOCK TO OUR BUSINESS ADDRESS. ALL BLOCKS THAT DO NOT FOLLOW INSTRUCTIONS WE BE CHARGED A SECOND TIME FOR SHIPPING**
HIGH HP ORING BLOCKS MUST BE BORE/DECK/HONED
ASSEMBLY FOR HIGH HP CSS BLOCKS MUST INCLUDE ORINGS.
IF SELECTING ENGINE ASSEMBLY YOU WILL NEED TO INCLUDE BLOCK, CRANK, AND MAIN CAPS.
ALL SUPPLIED PISTONS MUST BE AT LEAST .020 OVER (81.5 FOR B, 86.5 K20, 87.5 K24), WE CANNOT BUILD WITH STOCK BORE ON CSS ENGINES.
ENGINE ASSEMBLY INCLUDE BEARINGS.
ENGINE ASSEMBLY KITS:
HP 700HP KIT : MANLEY, SKUNK OR CALLIE H BEAM RODS + TRAUM PISTONS
HP 1000HP KIT: MANLEY TURBO TUFFS + TRAUM PISTONS

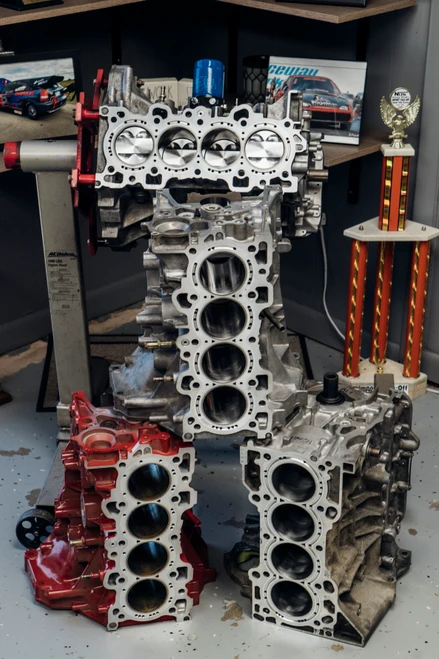

Honda's open deck blocks are notorious for cracking sleeves at high power levels. CSS is an affordable way to build a reliable, high horsepower street engine.
CSS is a process by which the block is machined and the cylinder walls are reinforced using CSS's proprietary process that converts an open deck honda engine to a closed deck engine for maximum reliability.
CSS blocks alleviate the worries of sinking sleeves, they do not distort the main caps like sleeves can, and they do not heat soak like sleeves can.
We recommend CSS for cars aiming to make 500-700HP. For 700+, we recommend the High HP w/ O-Rings.
PLEASE READ BEFORE ORDERING
